AndroidでQRコード作成
WEBサービスでバーコード作成をしてくれるサービスを利用し、バーコードを作成したときのこと。。。
Androidアプリで同じことができるんじゃって思ってしまった。
WEBサービスと同じバーコードじゃ面白くないから、せっかくなのでQRコードを作成してみました。
その時の備忘録として記事を書いていきたいと思います。
メイン画面

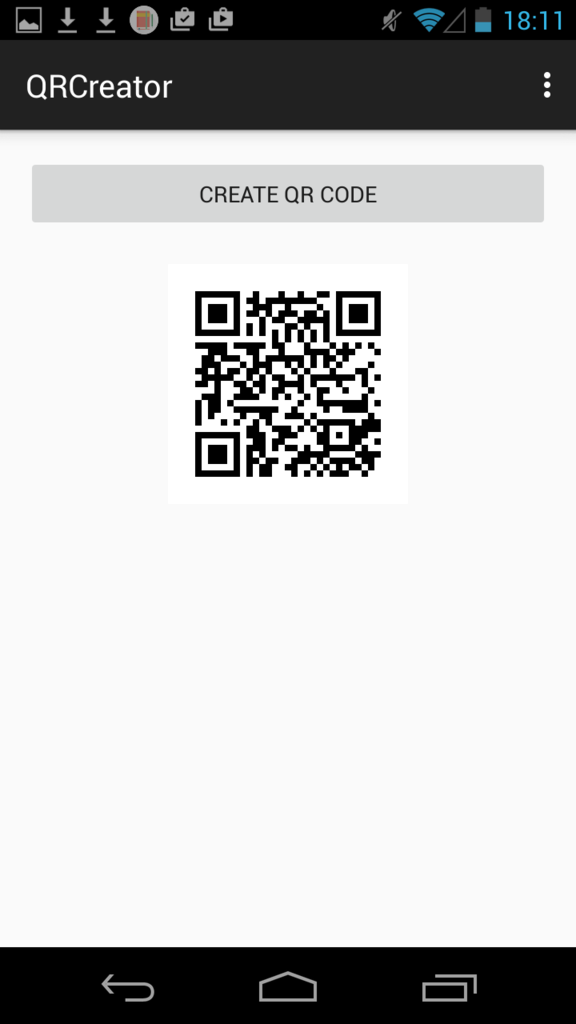

処理終了後
QRコードを0から作るのは、さすがに厳しいので、「ZXing」というライブラリを利用させてもらいました。
Android Studioで開発する場合は、Gradleのdependenciesに以下を追加するだけで利用可能になります。
compile 'com.journeyapps:zxing-android-embedded:2.0.1@aar' compile 'com.journeyapps:zxing-android-legacy:2.0.1@aar' compile 'com.journeyapps:zxing-android-integration:2.0.1@aar' compile 'com.google.zxing:core:3.0.1'
① まずはメイン画面を作成します。画面はボタンと結果を表示するためのImageViewで構成します。
1)レイアウトファイル(fragment_main.xml)
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:paddingLeft="@dimen/activity_horizontal_margin" android:paddingRight="@dimen/activity_horizontal_margin" android:paddingTop="@dimen/activity_vertical_margin" android:paddingBottom="@dimen/activity_vertical_margin" tools:context=".MainActivityFragment"> <LinearLayout android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent"> <Button android:layout_width="match_parent" android:layout_height="wrap_content" android:text="Create QR Code" android:id="@+id/button" android:gravity="center" android:onClick="onClickQRCodeCreate" /> <ImageView android:layout_width="wrap_content" android:layout_height="wrap_content" android:id="@+id/imageView" android:layout_gravity="center" android:layout_marginTop="20dp" /> </LinearLayout> </RelativeLayout>
2)MainActivity.java
public class MainActivity extends AppCompatActivity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); } //QRCode作成 public void onClickQRCodeCreate(View view) { // QRCodeの作成 Bitmap qrCodeBitmap = this.createQRCode("http://nlinks-engineers.hatenablog.com/"); // QRCodeの作成に成功した場合 if (qrCodeBitmap != null) { // 結果をImageViewに表示 ImageView imageView = (ImageView) findViewById(R.id.imageView); imageView.setImageBitmap(qrCodeBitmap); } } private Bitmap createQRCode(String contents) { Bitmap qrBitmap = null; try { // QRコードの生成 QRCodeWriter qrcodewriter = new QRCodeWriter(); BitMatrix qrBitMatrix = qrcodewriter.encode(contents, BarcodeFormat.QR_CODE, 300, 300); qrBitmap = Bitmap.createBitmap(300, 300, Bitmap.Config.ARGB_8888); qrBitmap.setPixels(this.createDot(qrBitMatrix), 0, 300, 0, 0, 300, 300); } catch(Exception ex) { // エンコード失敗 Toast.makeText(getApplicationContext(), ex.toString(), Toast.LENGTH_SHORT).show(); } finally { return qrBitmap; } } // ドット単位の判定 private int[] createDot(BitMatrix qrBitMatrix) { // 縦幅・横幅の取得 int width = qrBitMatrix.getWidth(); int height = qrBitMatrix.getHeight(); // 枠の生成 int[] pixels = new int[width * height]; // データが存在するところを黒にする for (int y = 0; y < height; y++) { // ループ回数盤目のOffsetの取得 int offset = y * width; for (int x = 0; x < width; x++) { // データが存在する場合 if (qrBitMatrix.get(x, y)) { pixels[offset + x] = Color.BLACK; } else { pixels[offset + x] = Color.WHITE; } } } // 結果を返す return pixels; } }
作りは単純で、「ZXing」の「QRCodeWriter」クラスを利用して、「BitMatrix」を生成し、
内容を解析して、Bitmapを作成しています。
こんなにお手軽にQRコードが作成できるなんて思っていなかったので、びっくりです。
QRコードを作成することなんかないかもしれませんが、どこかで役に立つかもしれないので。。。。
是非とも挑戦してみてください。
ちなみに、今回作成したQRコードは、QRコードリーダーで読み取るとこのブログのUrlになります。
過去の記事も是非とも見てみてください。
